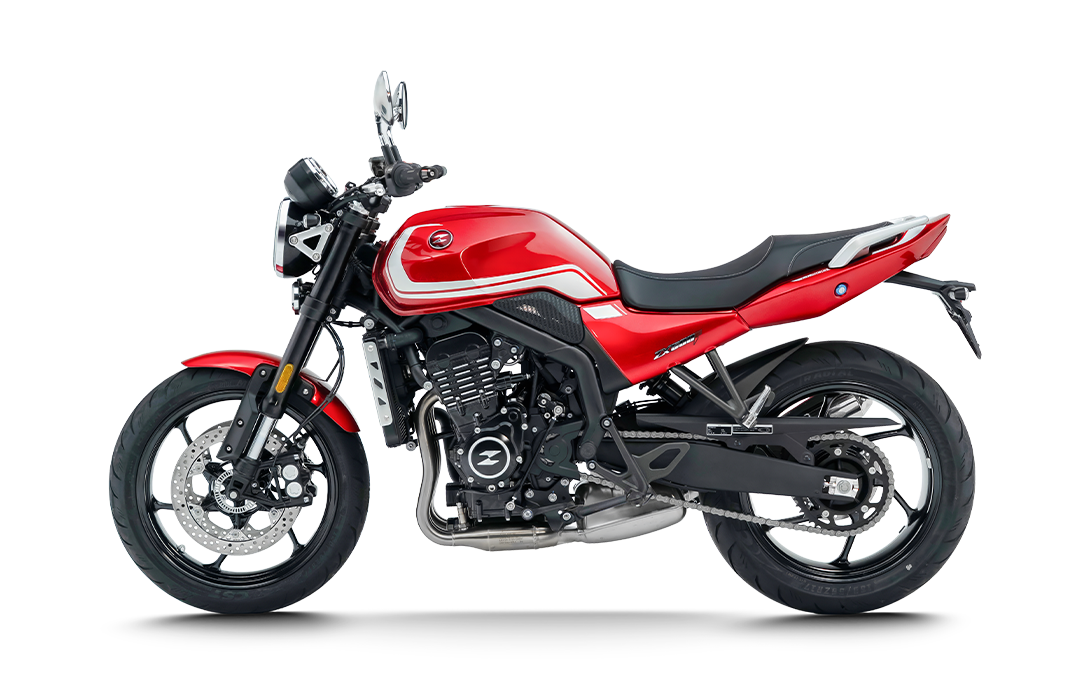

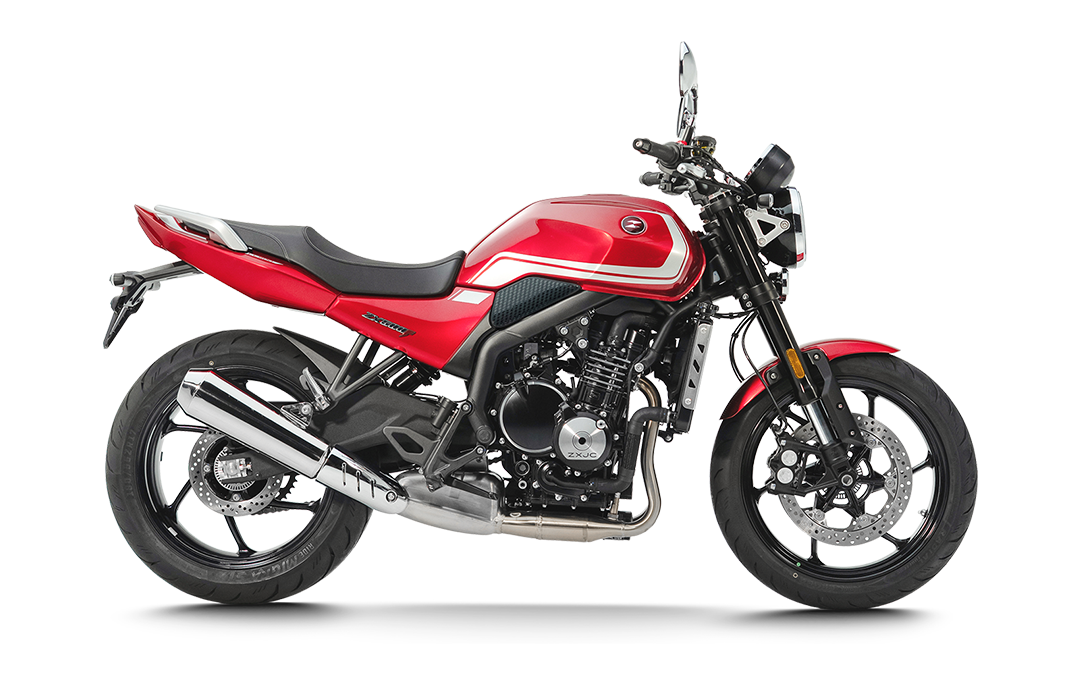

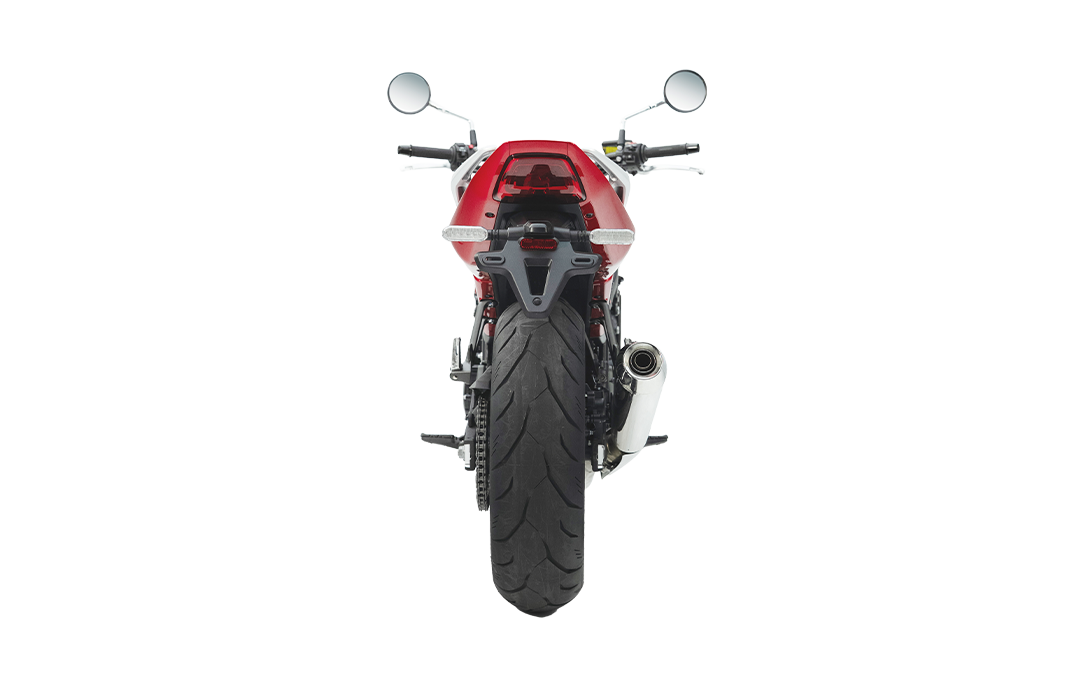

500F _NAKED_MODELS_ZXMOTO Global Official Site

COLOR

470

Displacement(cc)

54 /11000

Max. Power(kW/rpm)

48/9500

Max. Torque(N.m/rpm)

175

Curb Weight(kg)

SPECS

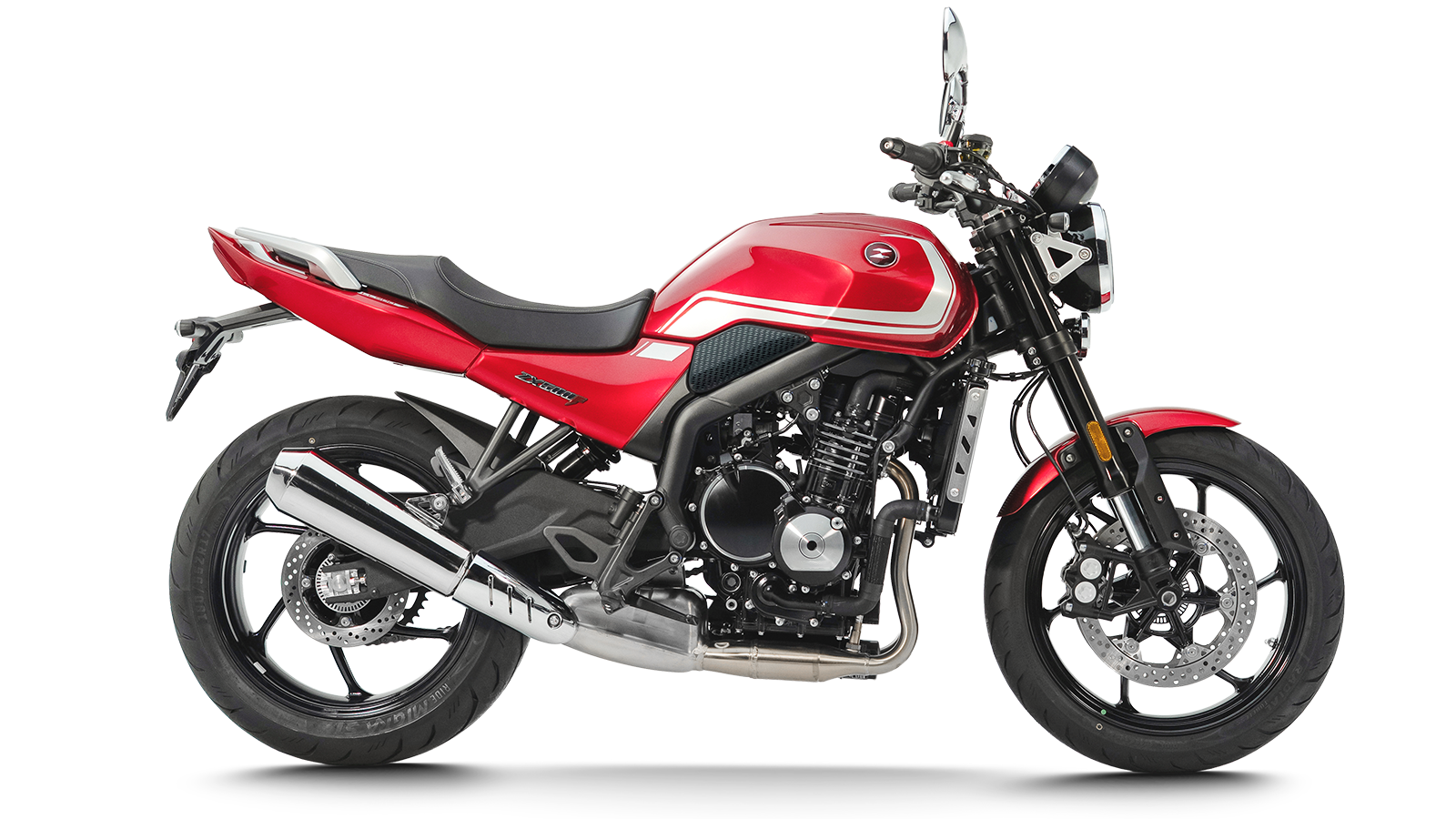

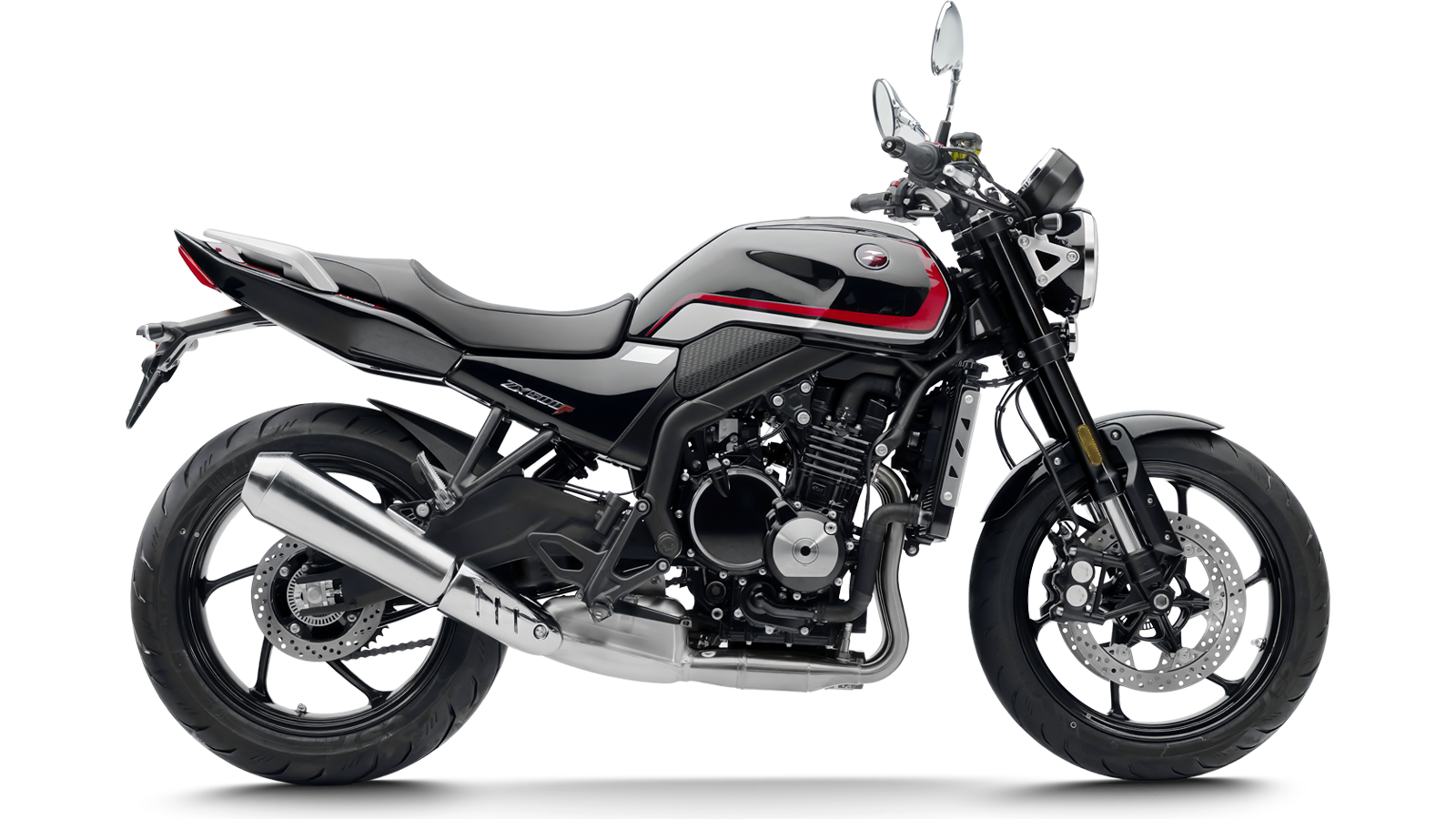

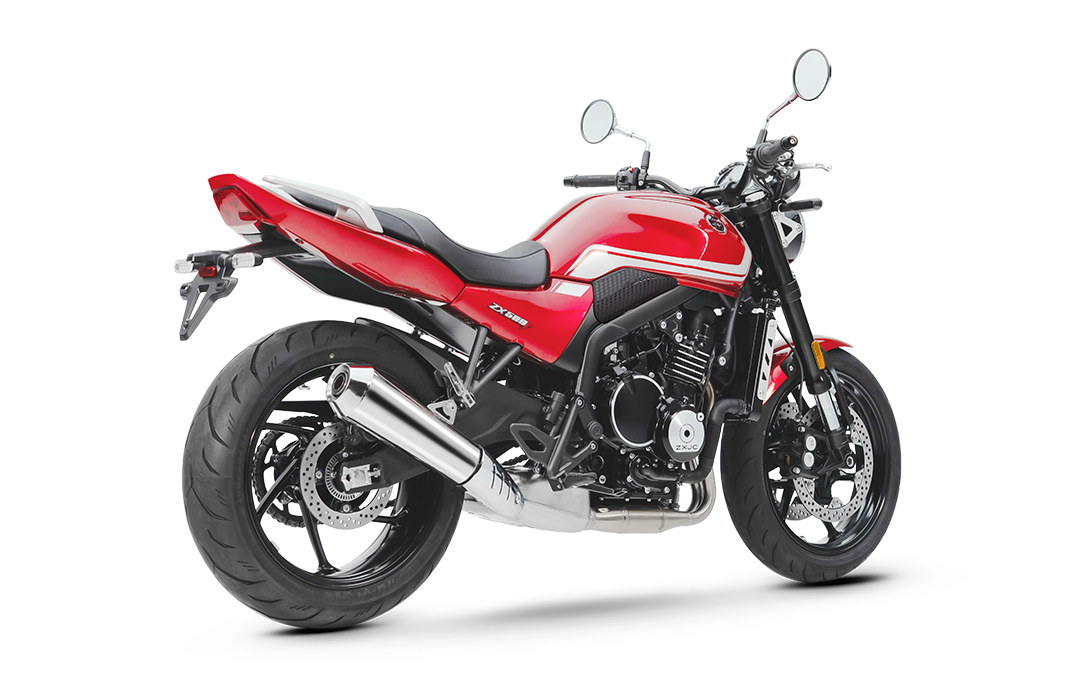

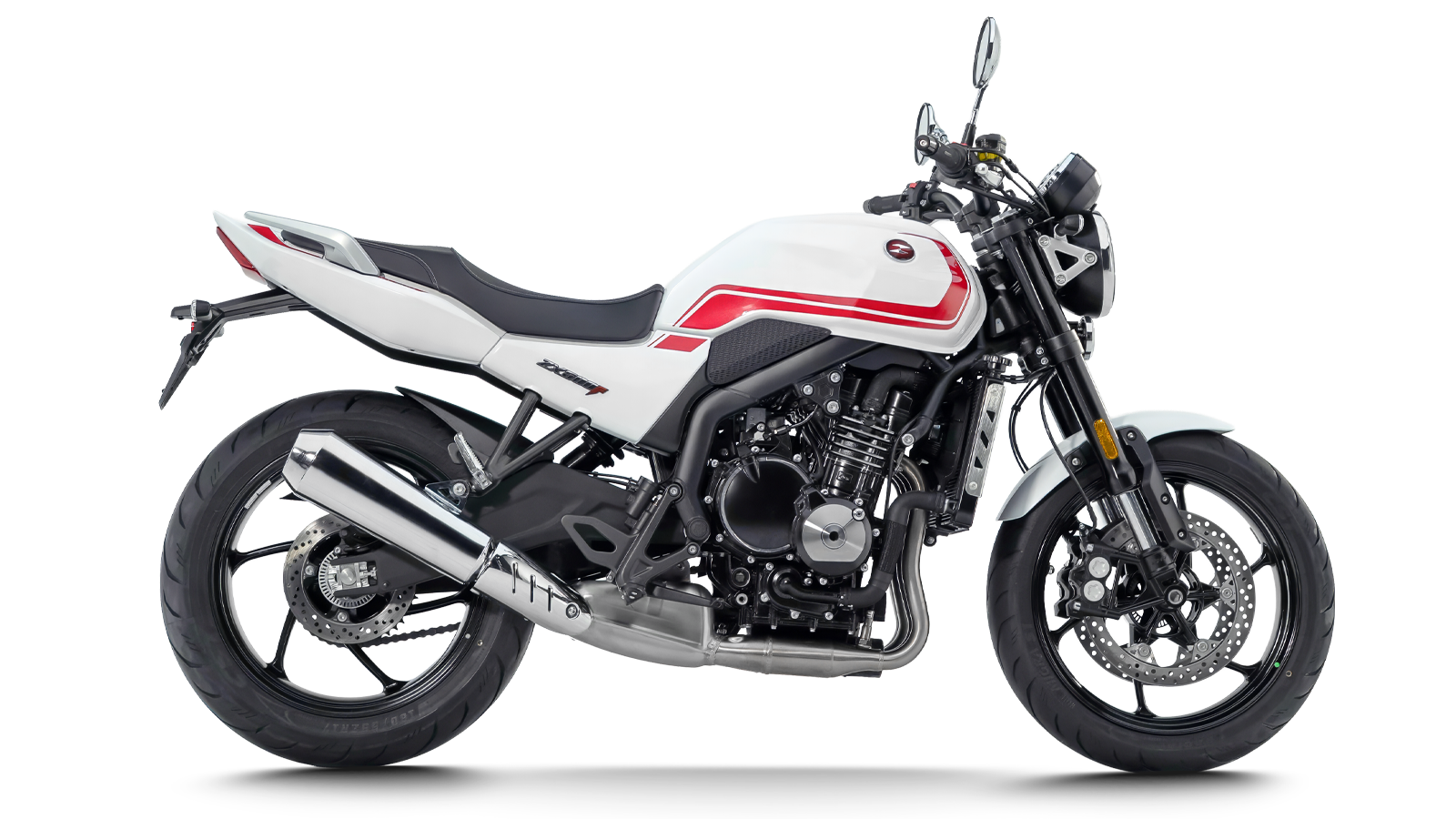

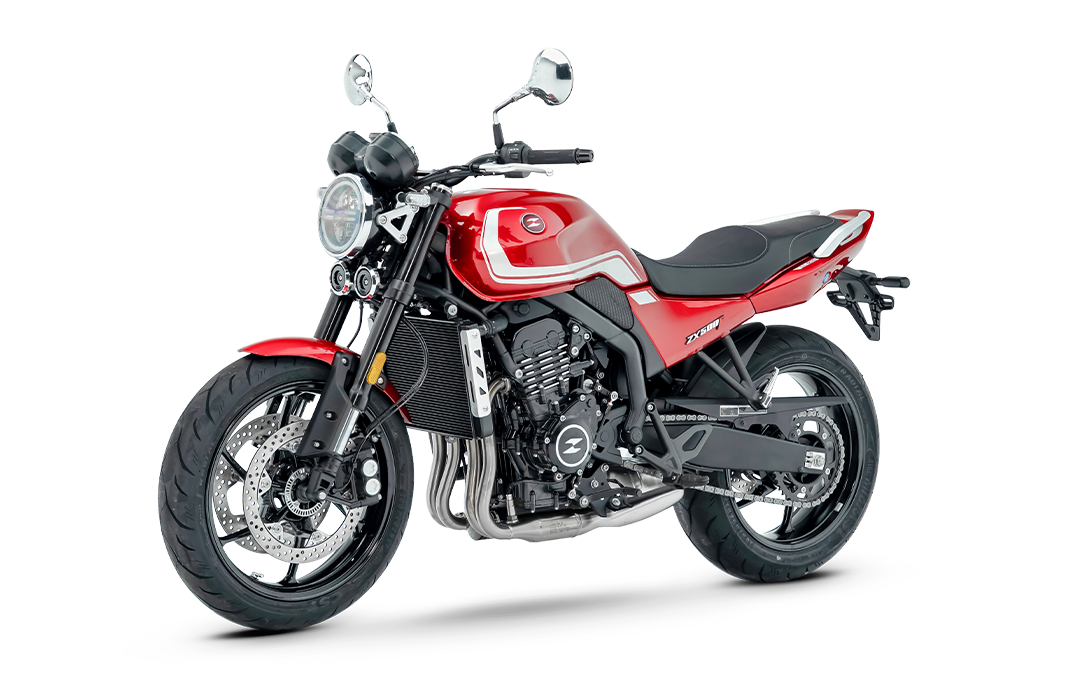

500F

DIMENSIONS
CHASSIS
ENGINE

Length x Width x Height(mm)2015×805×1090
Wheel base(mm)1395
Seat height(mm)795
Fuel Capacity(L)15.5
Curb weight(kg)175
Dry weight(kg)165
Steering angle(°)33.5
Rake Angle（(°)24.5

FrameIntegrated Steel Trellis Diamond Frame
Rear Swing ArmNormal Swing Arm(Aluminum Alloy)
Front SuspensionInverted, Adjustable Damping
Tire CST S1
Front Wheel Size120/70 ZR17
Rear Wheel Size180/55 ZR17
RimAluminum alloy cast front MT3.5*17 rear MT5.5*17
Front CaliperFloating Caliper
Front Disc300mm dual floating disc
Rear Caliper1-piston floating caliper(TAISKO)
Rear Disc220mm single disc

Type4 inline-cylinder,DOHC,16-valve,liquid-cooled
Max. Power/rpm(kW/rpm)54/11000
Max. Torque/rpm(N·m/rpm)48/9500
Displacement(cc)470
Bore × Stroke (mm)59×43
Engine Cycle4-Stroke
Compression Ratio12:1
Fuel deliveryBOSCH EFI

Timeless Design, Modern Comfort

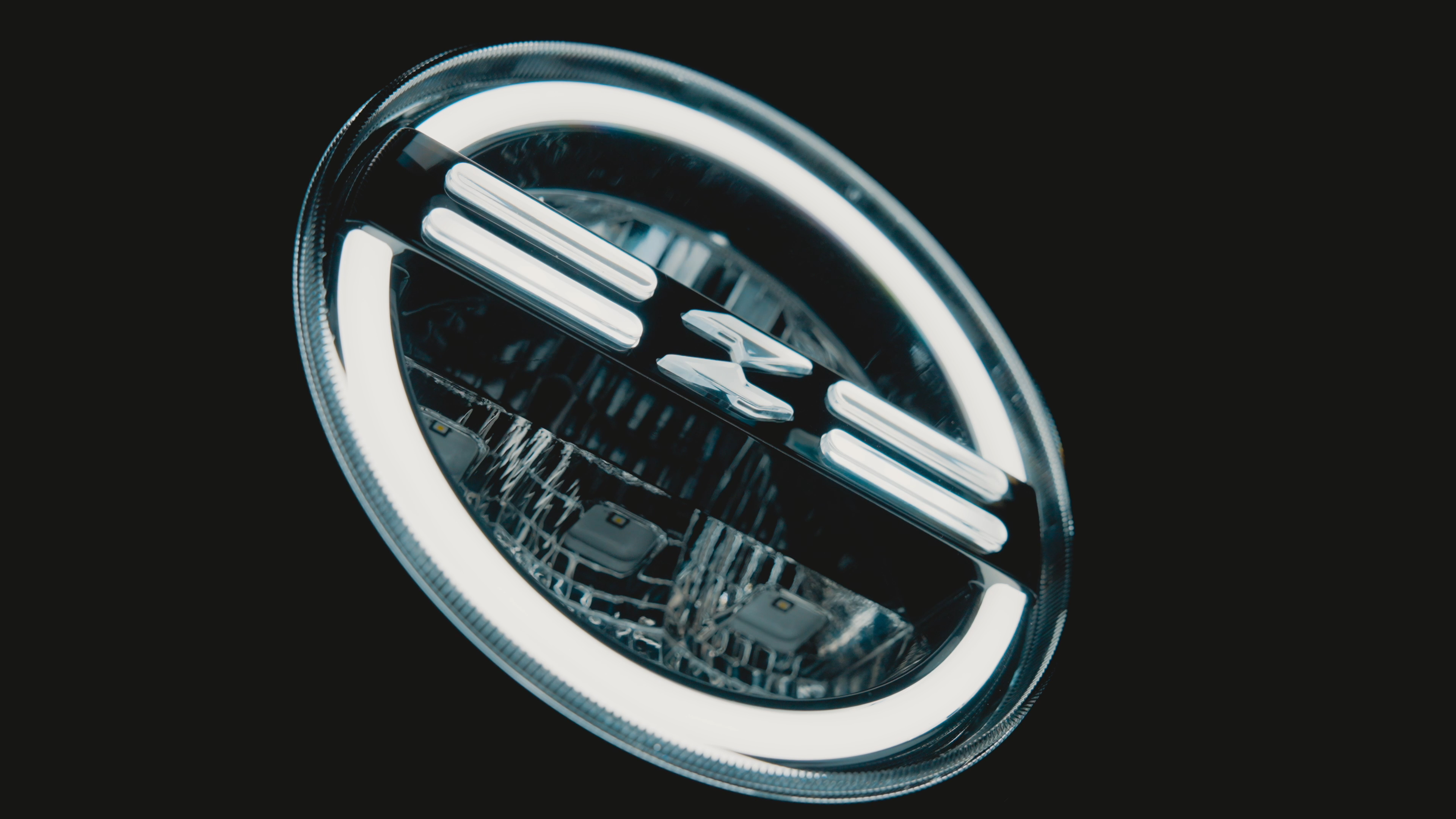

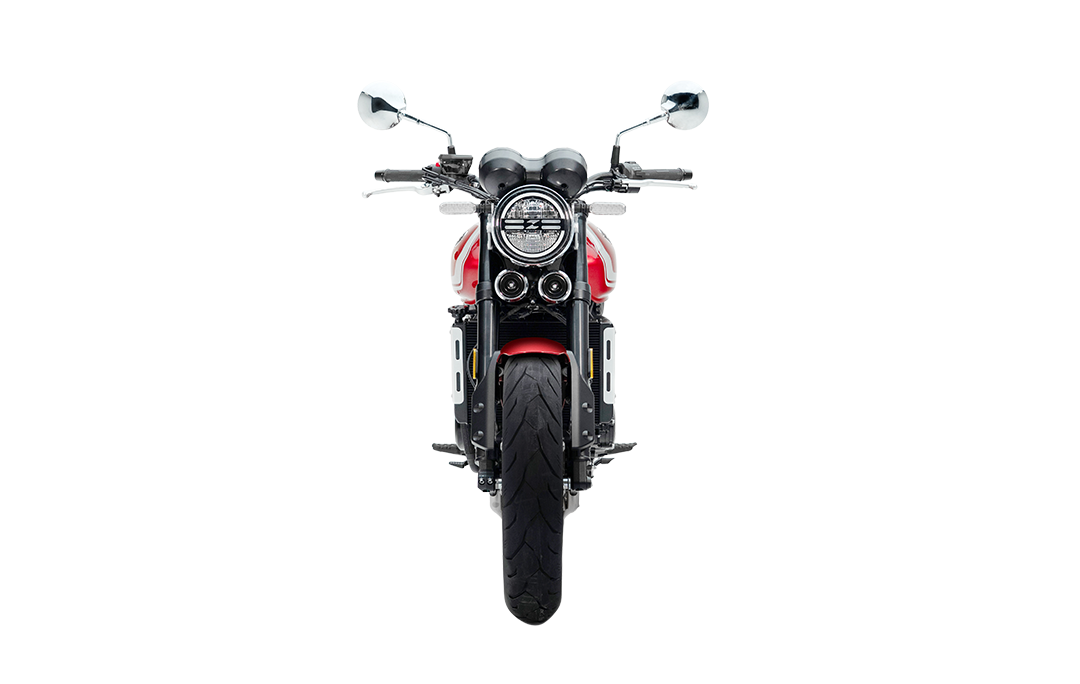

The 500F's aesthetic is a direct tribute to iconic Japanese naked bikes, featuring a timeless round LED headlight and a clean tail section. Its thoughtfully designed ergonomics are highlighted by a comfortably padded seat and a relaxed riding posture that feels natural and relaxed. The low, 795mm seat height instills confidence at a stop, making it an exceptionally approachable machine for both new and seasoned riders.

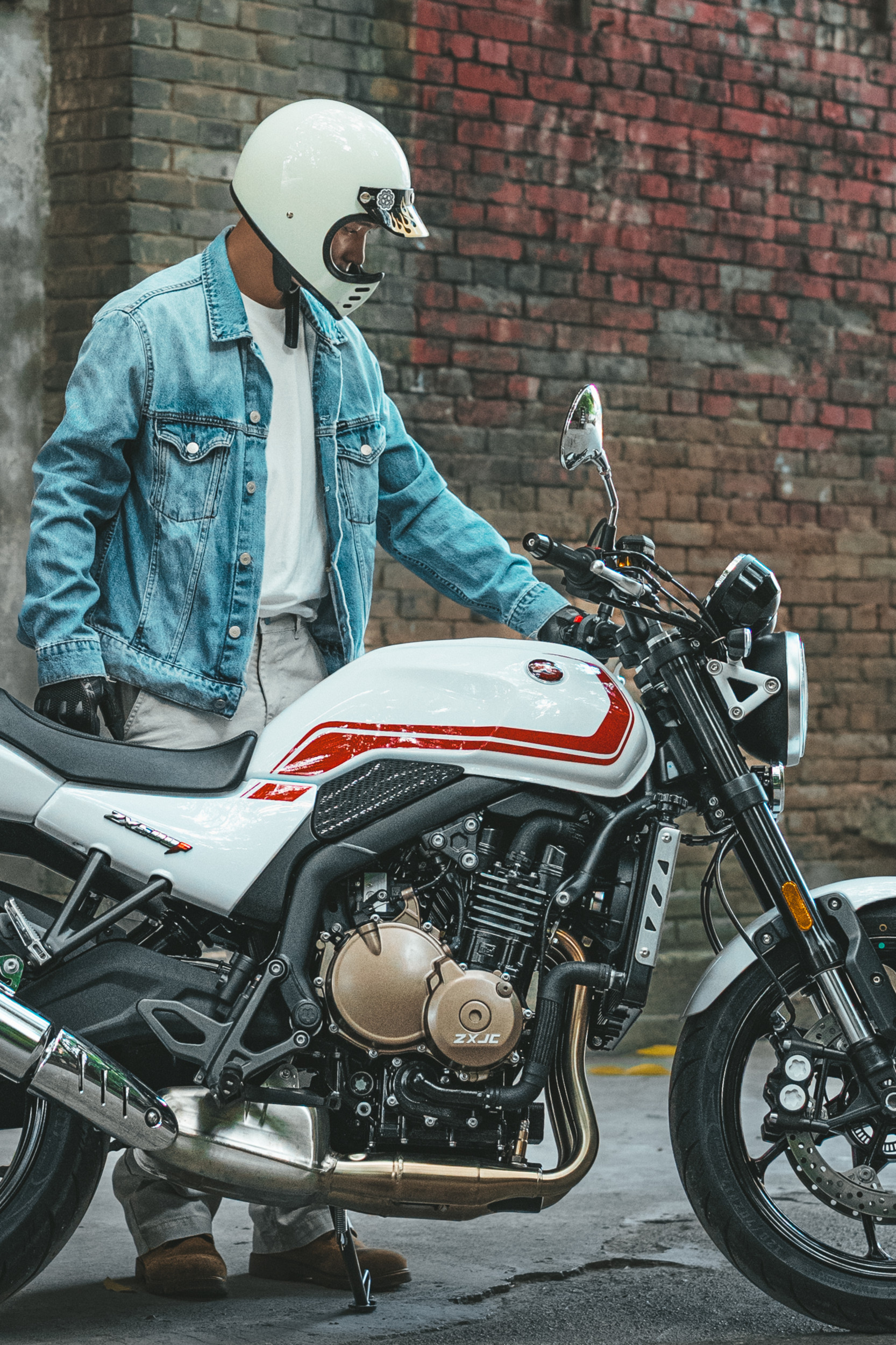

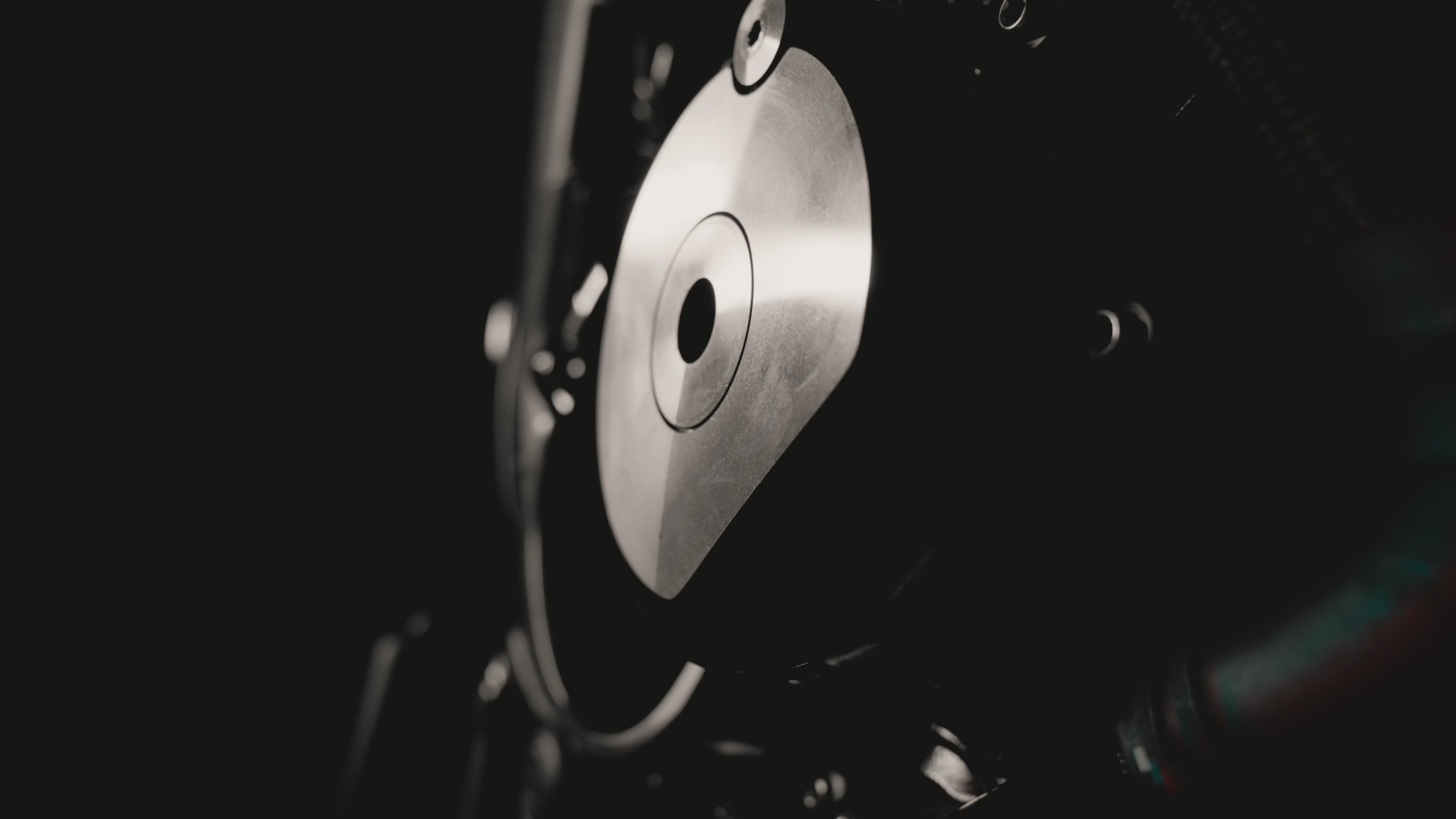

Refined Four-Cylinder Heart

Central to its appeal is the smooth, 470cc inline-four engine, renowned for its satisfying and potent exhaust note. This characterful powerplant is complemented by a comprehensive safety suite, including dual-channel ABS and switchable traction control. The fully adjustable inverted front forks and capable braking system work in harmony to provide precise handling and instill a deep sense of confidence on the road.

Effortless and Engaging Performance

Tailored for real-world enjoyment, with a torque-rich delivery that makes city riding effortless and highway overtaking brisk. The engine's flexible nature is matched by its willingness to rev, producing an exhilarating soundtrack that enhances the riding experience. Combined with a comfortable, confidence-inspiring chassis and a practical 350km+ range, the 500F proves to be a versatile companion for everything from daily commutes to leisurely weekend tours.
